2.5GigE & 5GigE Interfaces for Machine Imaginative and prescient




Welcome to this instalment of Clearview weblog. On this weblog put up we will likely be speaking concerning the comparatively new 2.5GigE and 5GigE machine imaginative and prescient applied sciences, and the way these examine with normal (1)GigE. Extra particularly, we’ll be unravelling why these two platforms are uniquely advantageous for OEMs in contrast with the present line-up of machine imaginative and prescient interface choices options.

Entry stage: 1GigE

Sometimes, 1GigE has been the entry stage for these constructing machine imaginative and prescient methods. It entered the sector in 2006, and since then, has had many enhancements and seen extra highly effective variations increase the ceiling of what’s doable with gigabit ethernet connections in machine imaginative and prescient. We are able to have a look at 1GigE because the founding father of later GigE interfaces, the groundwork upon which all future iterations of the usual will likely be developed.

Sadly, as time strikes on, 1GigE will proceed to face insurmountable challenges that drive customers to change to a extra succesful interface. By in the present day’s wants when it comes to bandwidth, 1GigE is shedding its footing as even fundamental purposes are demanding greater than what 1GigE affords.

Stepping up: 2.5GigE

In mild of this, the two.5GigE platform seeks to supply a revolution inside entry-level trendy machine imaginative and prescient with its potential to redefine the bottom GigE switch price. Many machine imaginative and prescient know-how producers are actually preparing for this new machine imaginative and prescient normal to, in time, substitute 1GigE, and are growing merchandise with the ability to save lots of time, cash, and trouble for numerous OEMs and finish customers.

1GigE with Compression vs Out-of-the-box 2.5GigE

A very frequent ‘hack’ we see with 1GigE customers is compression, which for a lot of methods is a needed measure taken to be able to get dependable switch speeds for high-resolution and/or excessive body charges utilizing 1GigE.

These trying to compress their 1GigE picture streams will wish to take into account cameras appropriate with Turbodrive from Teledyne Dalsa. It’s a characteristic designed to interrupt via 1GigE limitations, rising throughput by 20-150% while retaining 100% of picture knowledge and conveniently not requiring the person to alter their {hardware} or software program. The Blackfly S GigE vary of cameras from Teledyne FLIR can also be a robust choice value mentioning right here, as these characteristic configurable lossless compression straight out of the field.

While in concept, compression is a good thought, in apply it tends to take up appreciable CPU/GPU utilization. This implies it isn’t an ideal resolution, however extra a case of shifting the issue from one space to a different. And as picture processing features (akin to those who utilise deep studying) turn into extra highly effective, ultimately the draw back of compression will rear its ugly head and the restrictions of 1GigE will not be avoidable.

The two.5GigE platform solves this drawback. With switch speeds of over 300MB/s, it’s greater than able to delivering larger bandwidth imaging required by the most recent digicam sensors and complexity of purposes.

Greatest 2.5GigE Digicam

The brand new Triton2 IP67 2.5GigE digicam options 4th Gen Pregius S sensors starting from 5.0-24.5 MP, permitting for larger decision and body charges over Cat5e/Cat6 cabling.


Triton2: World’s First 2.5GigE Industrial Machine Imaginative and prescient Digicam

 With a compact 29x44x45mm measurement, 250% the bandwidth of 1GigE, Energy over Ethernet (PoE), and glorious price-performance, Triton2 is a very nice improve from 1GigE cameras and a great various to USB 3.0.

Why 5GigE?

The principle advantage of 5GigE cameras is that they exist in a ‘candy spot’ between 1GigE and 10GigE. 1GigE cameras are typically compact in measurement, however fall down in bandwidth, with a most theoretical switch price of 125MB/s. This was enough for older CMOS and CCD sensors, however as newer CMOS sensors are extremely quick and ship a a lot larger decision than ever earlier than, the 1GigE platform is rapidly changing into a choke level as we transfer additional into the age of Trade 4.0.

10GigE cameras alternatively excel in bandwidth, with big switch charges of as much as 1.25GB/s – nonetheless with this superior energy comes a worth, as they are often bulkier and extra power-intensive. 10GigE isn’t wanted for each utility, and so a midway level between the 2 interfaces has made itself clear as a spot out there.

Greatest 5GigE Digicam

The Teledyne FLIR Forge 5GigE goals to shut shut this hole, with out the necessity for 1GigE cameras with onboard compression, delivering spectacular bandwidth in a extra compact kind issue than 10GigE choices.


With 5MP decision, body charges of as much as 120fps and a Sony IMX54 sensor, the primary iteration of the Forge is a good all-rounder, and can quickly be joined by additional fashions with excessive decision and body price choices.

The Forge 5GigE additionally helps hyperlink speeds of 1, 2.5, and 5GigE, making it a particularly succesful digicam platform for these wanting so as to add flexibility to imaginative and prescient methods that already use these GigE interfaces.

1GigE vs 2.5GigE vs 5GigE

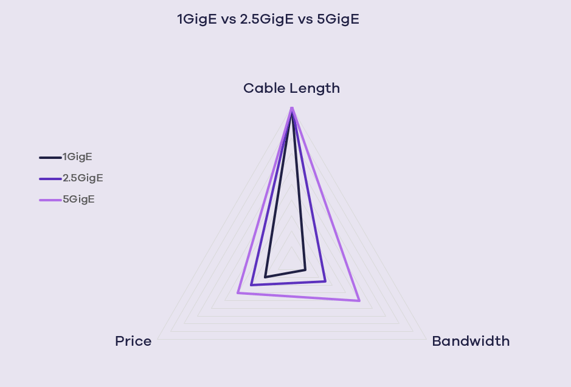

Evaluating cable size, bandwidth and worth throughout the decrease GigE interfaces

Cable Distance

This half is totally even throughout our three contenders; all can switch at dependable speeds at as much as 100m. It’s at worth and bandwidth the place we begin to see the variations.

Cale length

GigE, 2.5GigE and 5GigE all assist cable lengths of as much as 100m


The price of these low-to-medium stage GigE platforms is roughly as you’ll anticipate; 1 via 5GigE are priced in accordance with their capabilities, however you begin to get extra in your cash on the 5GigE stage. 1GigE is a really inexpensive platform, and as you’d anticipate, the bandwidth isn’t precisely jaw-dropping. Nevertheless, at this stage, the utmost cable distance is an enormous plus level when evaluating it with different low-cost interfaces like USB 3.2 (simply 3 metres).


Commonplace GigE delivers 125MB/s knowledge switch speeds, which is alone on the backside of this comparability, and as we’ve lined, is best fitted to machine imaginative and prescient purposes with minimal bandwidth necessities. Maybe extra appropriate for many low-power customers is 2.5GigE, in a position to switch 300MB/s. Once more, 5GigE actually begins to tug away right here, in a position to ship imaging switch speeds of 625MB/s, which is admittedly spectacular contemplating its low worth level.

After all, 10GigE and 25GigE solid shadows over 5GigE, providing bandwidths of as much as 1.25GB/s and three.125GB/s respectively. They’re ultimate for energy customers engaged on demanding industrial machine imaginative and prescient purposes – however extra on that within the subsequent weblog!

A Huge World of Machine Imaginative and prescient Body Grabbers

Keep tuned with this sequence for yet one more weblog put up on GigE as we discover these codecs in better element, bringing you the machine imaginative and prescient experience and data to assist make the appropriate selections in your machine imaginative and prescient system.
